How to Read Inference Rules: PEG Semantics as an Example

O. Intro

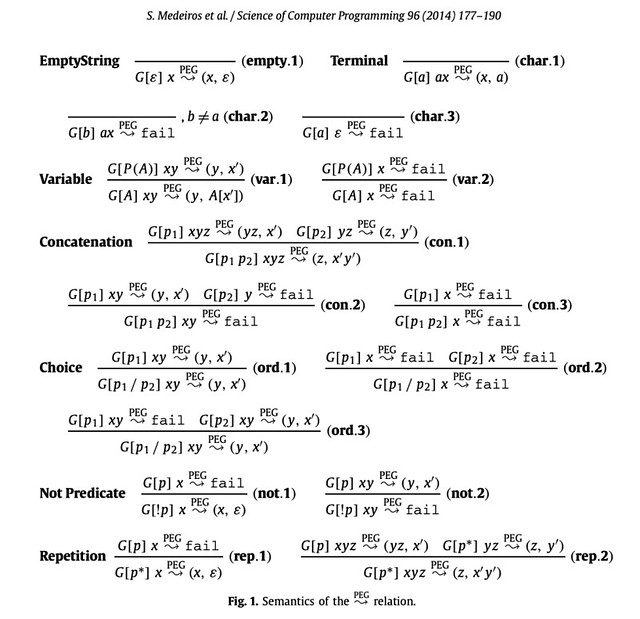

I came across this figure in the paper of Medeiros, Mascarenhas, and Ierusalimschy (2014):

These are inference rules, the building blocks of operational semantics. They look intimidating at first, but once you know how to read them, they tell you precisely how a language construct behaves.

1. Inference Rules

Each rule is a formal inference step of the form:

\[\frac{\text{premises}}{\text{conclusion}} (\textbf{rule name})\]

which simply means:

If $\text{premises}$ hold, then $\text{conclusion}$ holds.

If $\text{premises}$ is empty or null, then $\text{conclusion}$ holds unconditionally.

2. Judgments

Each $\overset{\text{PEG}}{\leadsto}$ indicates a judgment, which explains, e.g.

\[G[e] \; x \overset{\text{PEG}}{\leadsto} (x', r)\]

as:

Under grammar $G$ and PEG semantics, applying parsing expression $e$ to input string $x$ yields result $r$, leaving $x’$ as the unconsumed suffix of $x$.

3. Example: $\textbf{Choice}$

$\textbf{Choice}$ semantics

$\textbf{ord.1}$: if expression $p_1$ succeeds in parsing input $xy$ (in our cases, into $(y, x’)$), then expression $p_1/p_2$ succeeds as $p_1$ does

$\textbf{ord.2}$: if both $p_1$ and $p_2$ fail at parsing input $xy$, then expression $p_1/p_2$ fails as well

$\textbf{ord.3}$: if expression $p_1$ fails at parsing input $xy$ but $p_2$ succeeds, then expression $p_1/p_2$ succeeds as $p_2$ does
